Y、YKK系列高压三相异步电动机是国家根据节能、优化等原则大力推广的新产品，我公司按照国家和行业的相关标准设计和开发了Y、YKK系列3KV、6KV、10KV多种型号的高压三相异步电动机。

Y、YKK系列高压三相异步电动机具有结构紧凑、重量轻，节能、噪音低、振动小，可靠性高、使用寿命长，安装维护方便等特点。

本系列电动机广泛适用于各种通风机、水泵、破碎机、压缩机、机床、运输机械等无特殊要求的机械设备。是矿山、机电、石油、化工、电站等工矿企业重要的原动力设备。

本系列电机采用F级绝缘，温升按B级绝缘考核，额定电压3KV、6KV、10KV，额定频率50Hz，基本安装型式为卧式带地脚（IMB3）结构，防护等级为IP23、IP44、IP54冷却方式为IC01、IC11、IC21、IC31、IC611、IC616。

使用条件：

1、海拔不超过1000米。

2、环境空气温度，不超过40℃。

注：如电动机指定在海拔超过1000m或环境空气温度高于或低于40℃的条件下使用时，应按GB755-2008的规定。

3、环境空气温度：对采用滚动轴承的电动机为-15℃，对采用滑动轴承的电动机为0℃，或按协议。

4、月平均相对湿度为90%，同时该月的月平均温度不高于25℃。

5、电动机运行期间电源电压和频率与额定值的偏差应按BG755-2008的规定。

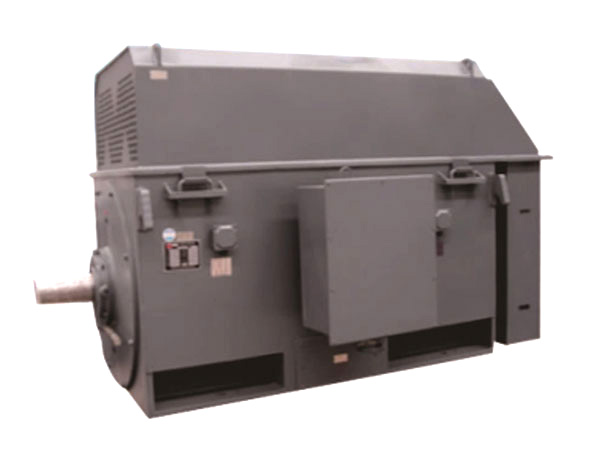

Y, YKK series high-voltage three-phase asynchronous motor is a new product which is vigorously promoted by the state according to the principles of energy saving, optimization and environmental protection. Our company has designed and developed Y, YKK series 3KV, 6KV, 10KV high-voltage three-phase asynchronous motor according to the relevant national and industrial standards.

Y, YKK series high-voltage three-phase asynchronous motors have the characteristics of compact structure, light weight, high efficiency, energy saving, low noise, low vibration, high reliability, long service life, easy installation and maintenance.

This series of motors are widely used in all kinds of ventilators, pumps, crushers, compressors, machine tools, transport machinery and other mechanical equipment without special requirements. It is an important power equipment for mining, electromechanical, petroleum, chemical, power plant and other industrial and mining enterprises.

This series of motors adopt F-class insulation, temperature rise is assessed according to B-class insulation, rated voltage 3KV, 6KV, 10KV, rated frequency 50Hz, basic installation type is IMB3 structure, protection grade is IP23, IP44, IP54 cooling mode is IC01, IC11, IC21, IC31, IC611, IC616.

Conditions of use:

1. No more than 1000 meters above sea level.

2. Ambient air temperature, not more than 40 degrees Celsius.

Note: If the motor is designated to be used at an altitude of more than 1000m or ambient air temperature above or below 40 C, it shall be in accordance with the provisions of GB755-2008.

3. Ambient air temperature: for the motor with rolling bearings, it is - 15 C, for the motor with sliding bearings, it is 0 C, or according to the agreement.

4. The monthly average relative humidity is 90%, and the monthly average temperature is not higher than 25 C.

5. The deviation between the voltage and frequency of the power supply and the rated value during the operation of the motor shall be in accordance with the provisions of BG755-2008.
